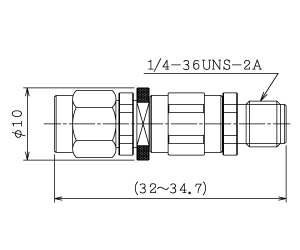

Phase Adapter
| Product Name | Phase Adapter |
|---|---|
| Model No. | 02X0654-00 |
| Frequency | DC～40GHz |
| RoHS | 〇 |
| Connector 1 | 2.92mmK/P SUS Pv |
| Specifications | Delay Time:9 ps |
| Constitution | Adapter |
| V.S.W.R. | DC～20GHz：1.3max 20～40GHz：1.45max |
| Insertion loss | 0.7dBmax |
| Remarks |
